Features

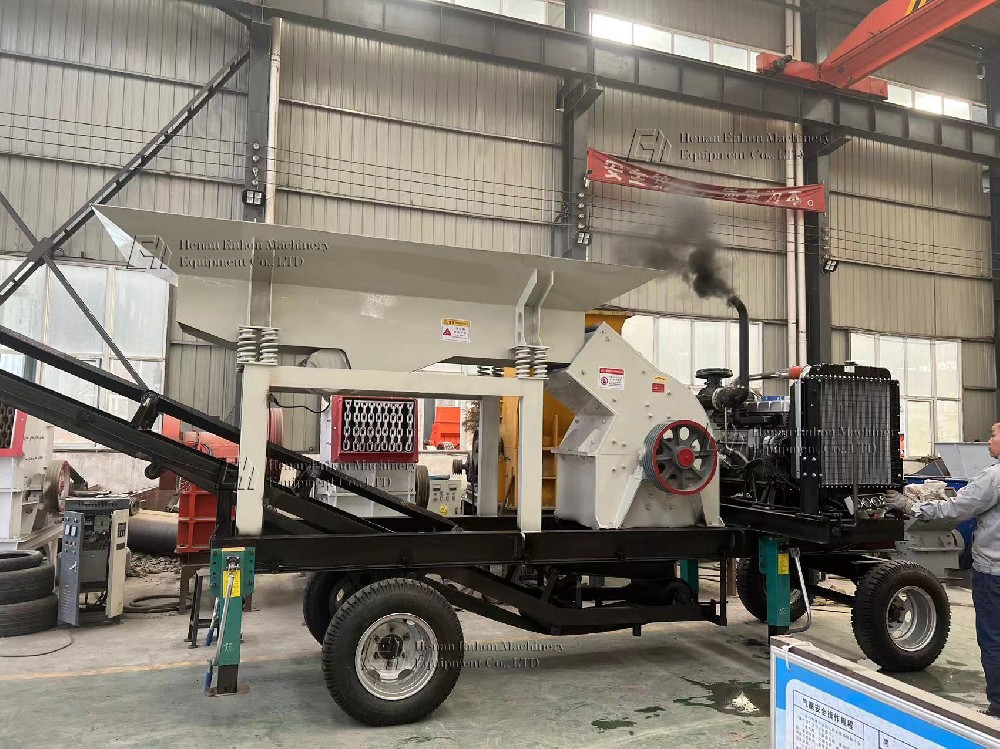

The comprehensive utilization of construction waste is an effective way to save capital and maintain the ecological environment. With our country paying more and more attention to maintaining ecology, construction waste is now also broken as a favorable capital. The hammer mobile crusher has played a great role in the crushing of construction waste.
Working Rrinciple:
The materials are evenly transported to the crusher by the feeder. After the preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It can be used together with other crushing equipment, and the operation is convenient and flexible.
Product Advantages:
1. The equipment has a good crushing effect on construction waste, construction waste, bricks, cans, coal, salt, cement clinker, coal gangue, shale, limestone, bluestone, wind fossil, slag and all kinds of medium and low hardness ores.
2. Novel design, stable and reliable operation, compact structure, less wearing parts, easy maintenance, small size, easy to replace parts. It is easy to move and can be broken anytime and anywhere.
3. The process is simplified, the structure is simple, the three-level crushing is changed to the two-level crushing, the production capacity is large, environmental protection and energy saving.
4 According to customer requirements, adjust the required particle size, hammer casting using new technology, wear resistance and impact resistance.
5 The finished material is cubic, strong pressure resistance, suitable for standard high building needs, a finished product size of 5mm accounted for more than 85%.
6 The structure of the body is sealed, which solves the problem of dust pollution and ash leakage of the crushing workshop.
7. Maintenance and power saving costs are 50%-70% lower than ordinary crushing machines.
Technical Data:
Model | SMC600 | SMC750 | SMC900 | SMC1060 | SMC1200 | SMC1300PEX |
Transport Size | ||||||
Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
Alex Weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
King Pin Weight(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
Jaw Crusher | ||||||
Model | PE | PE | PE | PE | PE | PEX |
Feed Opening(mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
Discharging Hole Setting Range(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
Capacity(t/h) | 15-60 | 40-110 | 90-180 | 110-380 | 220-450 | 30-105 |
Feeder | ||||||
Feed Hopper Volume | 3 | 4 | 7 | 10 | 10 | 3 |
Hopper Width | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
Model | ZSW6520 | ZSW8530 | ZSW9638 | ZSW1142 | ZSW1349 | ZSW8530 |
Belt Conveyor | ||||||
Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
