Features

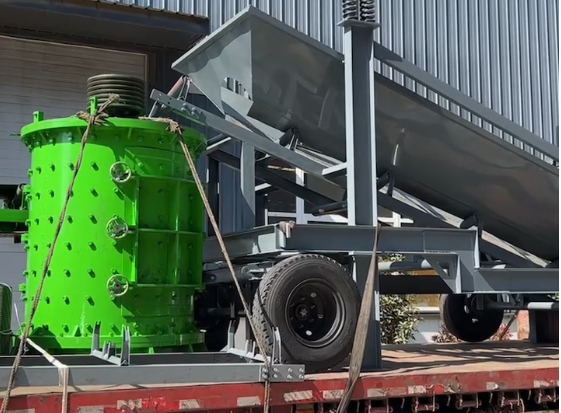

Mobile sand making machine is also called vehicle sand making machine integrated, divided into tire vehicle and track vehicle two different forms, free conversion site, a sand factory only needs one equipment, of course, the equipment is not a simple sand making machine, but also equipped with a feeder, vibrating screen, conveyor belt, etc., the function can not be underestimated.
Working Rrinciple:
The material of the mobile sand making machine enters the crusher by the hopper, the material is divided into two parts by the distributor, one part enters the high-speed rotating impeller by the middle of the distributor, is rapidly accelerated in the impeller, its acceleration can reach hundreds of times the acceleration of gravity, and then is thrown out of the impeller at a speed of 60-70 meters/second from the three uniform flow channels. First of all, part of the material collected from around the distributor is impacted and broken, and then the material lining in the vortex branch cavity is bounced by the material lining, and the upward impact is inclined to the top of the vortex cavity, and the movement direction is changed, and the downward movement isdeflected, and the material emitted from the impeller runner forms a continuous material curtain. Such a piece of material is subjected to two or more chances of impact, friction and grinding in the eddy crushing chamber. The broken material is discharged through the lower discharge port. It forms a closed circuit with the circulating screening system, and generally cycles three times to break the material into less than 20 mesh. In the whole crushing process, the material is broken by impact with each other, not in direct contact with the metal components, but with the material lining impact, friction and crushing, which reduces pollution and extends the mechanical wear time. The ingenious self-circulation of air flow inside the vortex chamber eliminates dust pollution.
Product Advantages:
1, mobile sand making, flexible, open to the site can be quickly put into work, reduce complex fixing and installation processes;
2, free transfer, simpler material transportation, reduce costs;
3, oil-electric hybrid function, reduce pollution, reduce energy consumption, more sufficient kinetic energy, more efficient crushing work;
4, free group machine, high sand production, and remote intelligent control of the operation site, more convenient;
5, small footprint, can climb, can cope with a variety of complex working conditions;
6. The specifications of the finished material obtained by sand making can be freely adjusted, and the discharge is uniform, and the user is more satisfied.
Technical Data:
