Features

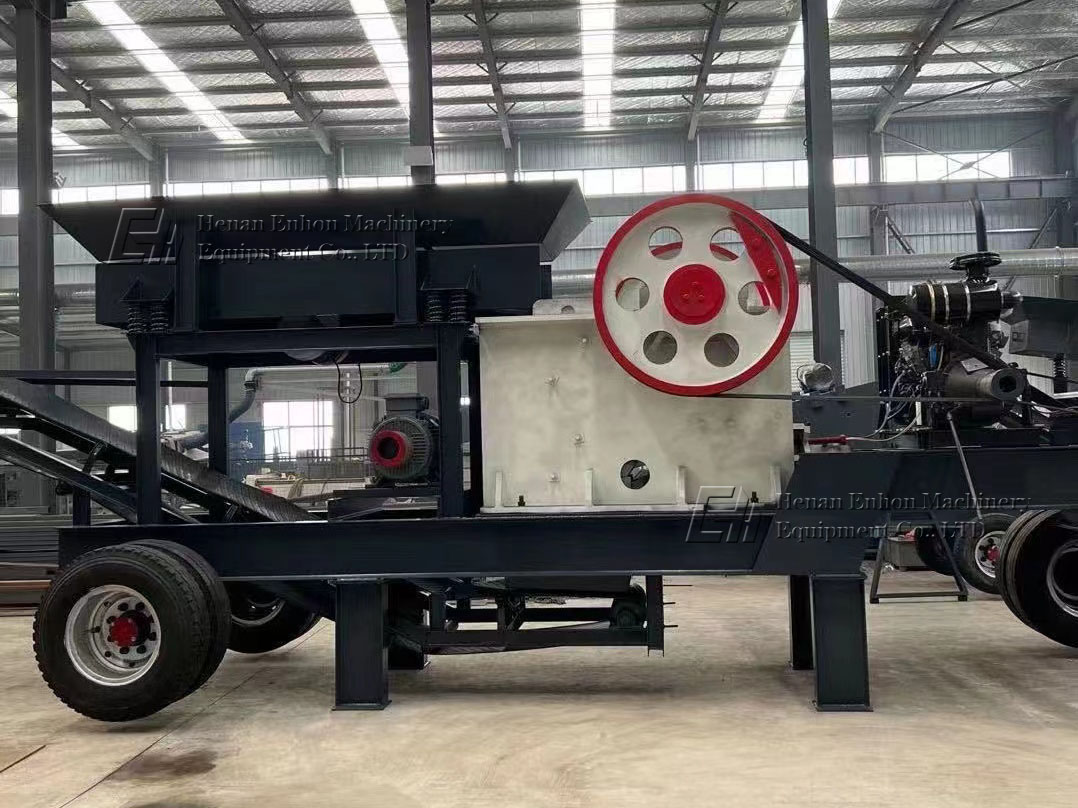

Jaw mobile crushing station is mainly composed of feeder, jaw crusher and belt conveyor, with the output of 85 ~ 650 tons per hour. The machine adopts integrated group operation mode, which can work alone, eliminates the complex site infrastructure and auxiliary facilities installation operation of separated components, and reduces the man hour consumption. Suitable for construction waste treatment, construction waste crushing, etc.
Working Rrinciple:
The materials are evenly transported to the crusher by the feeder. After the preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It can be used together with other crushing equipment, and the operation is convenient and flexible.
Product Advantages:
1. Unit integration. It can be operated directly, eliminating tedious infrastructure installation and man hour consumption.
2. It adopts ship type steel frame structure, low chassis, light weight, reasonable volume control, small turning radius, flexible and fashionable modeling, which can meet the needs of customers to the maximum extent.
3. The feeding guard board is hydraulically lifted, convenient for loading and unloading, convenient for fixing, stable and reliable.
4. The feeding guard board adopts a hierarchical double-layer structure, which provides a prerequisite for the expansion and personalized widening of the guard board.
5. The belt conveyor can be controlled to adjust the height and height. The iron remover is equipped with automatic lifting adjustment.
Technical Data:
Model | SMC600 | SMC750 | SMC900 | SMC1060 | SMC1200 | SMC1300PEX |
Transport Size | ||||||
Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
Alex Weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
King Pin Weight(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
Jaw Crusher | ||||||
Model | PE | PE | PE | PE | PE | PEX |
Feed Opening(mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
Discharging Hole Setting Range(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
Capacity(t/h) | 15-60 | 40-110 | 90-180 | 110-380 | 220-450 | 30-105 |
Feeder | ||||||
Feed Hopper Volume | 3 | 4 | 7 | 10 | 10 | 3 |
Hopper Width | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
Model | ZSW6520 | ZSW8530 | ZSW9638 | ZSW1142 | ZSW1349 | ZSW8530 |
Belt Conveyor | ||||||
Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
