Features

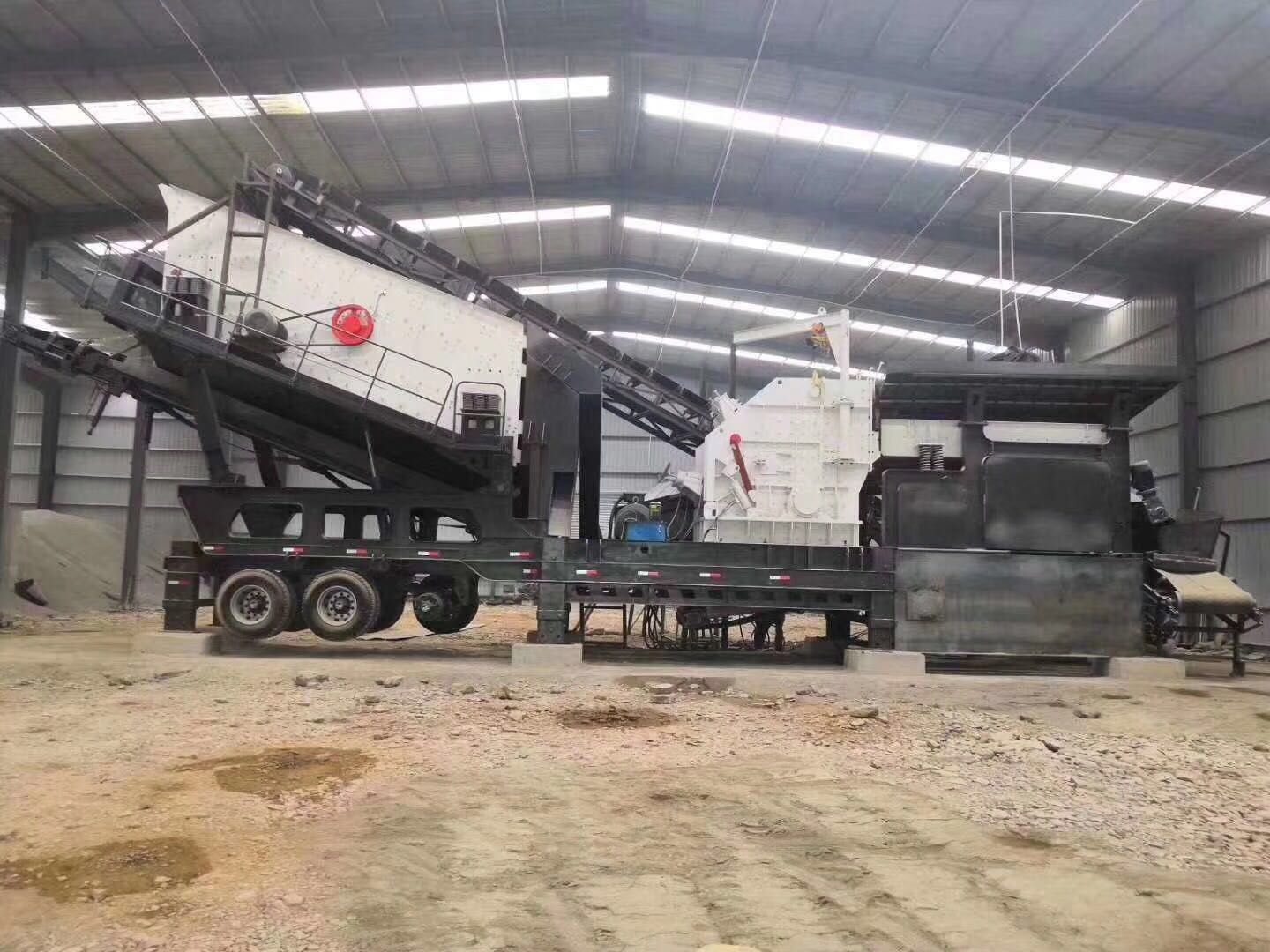

The tire-type impact crusher mobile crusher plant is mainly used for processing materials that often require relocation in metallurgy, chemical industry, building materials, hydropower, etc., especially for mobile stone operations such as highways, railways, and hydropower projects. Users can adopt a variety of configurations according to different types of raw materials, scale, and finished product material requirements. The tire-type impact crusher mobile crushing station is especially suitable for small crushing sites, construction waste treatment, and construction waste crushing.
Working Rrinciple:
The materials are evenly transported to the jaw crusher by the feeder, and the materials, after the initial breaking of the jaw crusher, are sent to the impact crusher for secondary crushing through the conveyor. The crushed materials are screened by the vibrating screen, and the conveyor exports the materials meeting the crushing requirements. The materials that do not meet the requirements are broken again by the impact crusher. The whole production line of crawler jaw crusher + impact crusher mobile station is connected The circular vibrating screen forms a closed-circuit system to realize the circular crushing of materials. The finished materials are output by the conveyor for continuous crushing operation.
Product Advantages:
1. Light weight, small size, especially suitable for narrow site work.
2. Low fuel consumption, low noise, stable and reliable performance.
3. The chassis adopts crawler type all steel ship type structure, with high strength, low grounding ratio and good performance. It has outstanding capability for mountainous and wetland.
4. The hydraulic drive system is adopted, and the mature high torque walking motor has large driving force and high stability. The full power variable opening hydraulic system is adopted for the walking system.
5. Convenient transportation, crawler walking, no damage to the road surface, equipped with multi-functional accessories, a wide range of applications.
Technical Data:
SMC Impact Crusher | SMC1010PFS | SMC1210PFS | SMC1214PFS |
Transport Size | |||
Length(mm) | 10800 | 12200 | 12500 |
Width(mm) | 2480 | 2743 | 2900 |
Height(mm) | 4170 | 4200 | 4200 |
Alex Weight(kg) | 15900 | 17200 | 22100 |
King Pin Weight(kg) | 11300 | 14300 | 17500 |
Impact Crusher | |||
Model | PF1010 | PF1210 | PF1214 |
Feed Opening(mm) | 400X1080 | 400X1080 | 400X1080 |
Vibrating Screen | |||
Model | 4YK1235 | 4YK1545 | 4YK1548 |
