Features

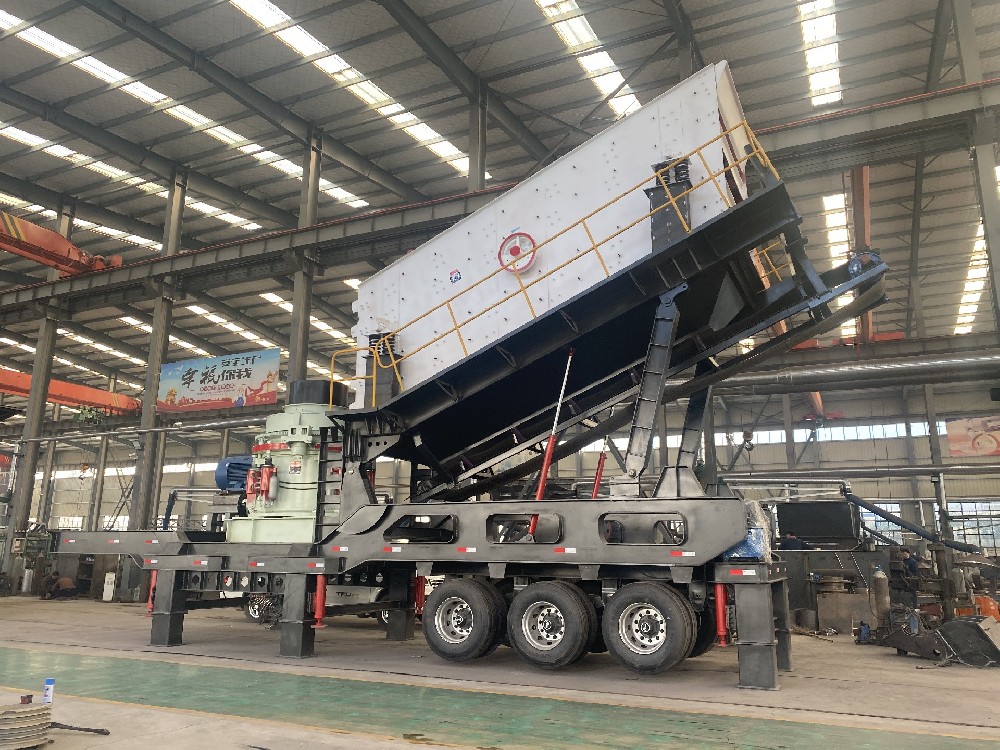

The mobile cone crusher plant is reliable in performance, convenient in maintenance, equipped with a high-performance cone crusher, high crushing efficiency, multi-function, excellent crushing product quality, and light and reasonable structural design. Reliable and stable quality assurance, meets the crushing and screening requirements of coarse, medium, and fine materials, and establishes a good reputation for the majority of new and old customers at home and abroad.
Working Rrinciple:
The materials are evenly transported to the cone crusher by the feeder. After the initial crushing, the cone crusher forms a closed-circuit system through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station of tire cone crushing + vibrating screen can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It is used with other crushing equipment, which is convenient and flexible.
Product Advantages:
1. Familiar with the modular design, the equipment adopts a new modular design concept, a common frame for multiple models, and it is easy to realize the free exchange between different host systems of the same model. Only changing the host system can easily meet different production requirements, and a diversified design is more convenient.
2. The configuration scheme is flexible and diversified, and the equipment space system is fully configured. It can work alone in a section of crushing. It can also work together with multiple pieces of equipment, such as a mobile jaw crusher and mobile sand-making machine, to meet the needs of multiple crushing and screening combinations.
3. Comprehensive combination, personalized scheme customization conical mobile crushing station includes seven modules and 24 types of models, comprehensive combination, output, feeding and unloading can be selected according to the needs of the host cone crusher, personalized scheme customization highlights the humanized design.
4. Efficient and intelligent, easy to operate, flexible and flexible parking system can quickly enter the working mode. At the same time, the hydraulic system can control the movement of equipment feeding and unloading and belt folding. PLC intelligent operation system is safe and easy to operate.
5. Environmental protection and high efficiency, energy-saving and oil-saving equipment, including water spray dust suppression devices, iron removal devices, noise reduction equipment, etc., must be added to meet the environmental protection standards without pressure. In addition, the hybrid operation of oil and electricity is adopted, which can save energy and fuel, and provide various energy supply modes. Users can choose freely and operate the equipment more efficiently.
Technical Data:
Standard Model | Supporting Equipment | Supporting Equipment | External Dimension (mm) | ||
Model | Feed Size (mm) | Processing Capacity (T / h) | |||
S-CS75 | 3YZK1848 | CS75 | ≤160 | 59-163 | 12600×2800×4400 |
S-CS110 | 3YZK1860 | CS110 | ≤178 | 100-200 | 13800×3000×4400 |
S-CS160 | 3YZK2160 | CS160 | ≤188 | 132-253 | 13800×3000×4400 |
S-CS220 | 3YZK2160 | CS220 | ≤230 | 215-330 | 14500×3000×4500 |
S-HQ300 | 3YZK1848 | SHQ300 | ≤160 | 65-168 | 12600×2800×4400 |
S-HQ400 | 3YZK1860 | SHQ400 | ≤230 | 105-205 | 13800×3000×4400 |
S-HQ500 | 3YZK2160 | SHQ500 | ≤240 | 180-290 | 14500x3000x4600 |
S-H420 | 3YZK1848 | SH420 | ≤240 | 85-170 | 12600×2900×4400 |
S-H430 | 3YZK1860 | SH430 | ≤360 | 120-345 | 13800×3000×4500 |
S-H440 | 3YZK2160 | SH450 | ≤450 | 255-605 | 14800×3200×4600 |
S-HP100 | 3YZK1860 | SHP100 | ≤140 | 75-140 | 13800×2900×4300 |
S-HP200 | 3YZK2160 | SHP200 | ≤185 | 145-250 | 14200×3000×4500 |
S-HP300 | 3YZK2160 | SHP300 | ≤230 | 220-440 | 16500×3200×4600 |
S-PF1214 | 3YZK1860 | PF1214 | ≤300 | 100-200 | 14500×2900×4500 |
S-PF1315 | 3YZK2160 | PF1315 | ≤350 | 130-280 | 15200×3000×4500 |
S-PF1320 | 3YZK2460 | PF1320 | ≤500 | 180-400 | 15200×3000×4500 |
S-S1860 | 3YZK1860 | ≤400 | 65-586 | 10500×2700×4200 | |
S-S2160 | 3YZK2160 | ≤400 | 81-720 | 10500×3000×4500 | |
S-S2460 | 3YZK2460 | ≤400 | 100-810 | 10500×3200×4500 |
