Features

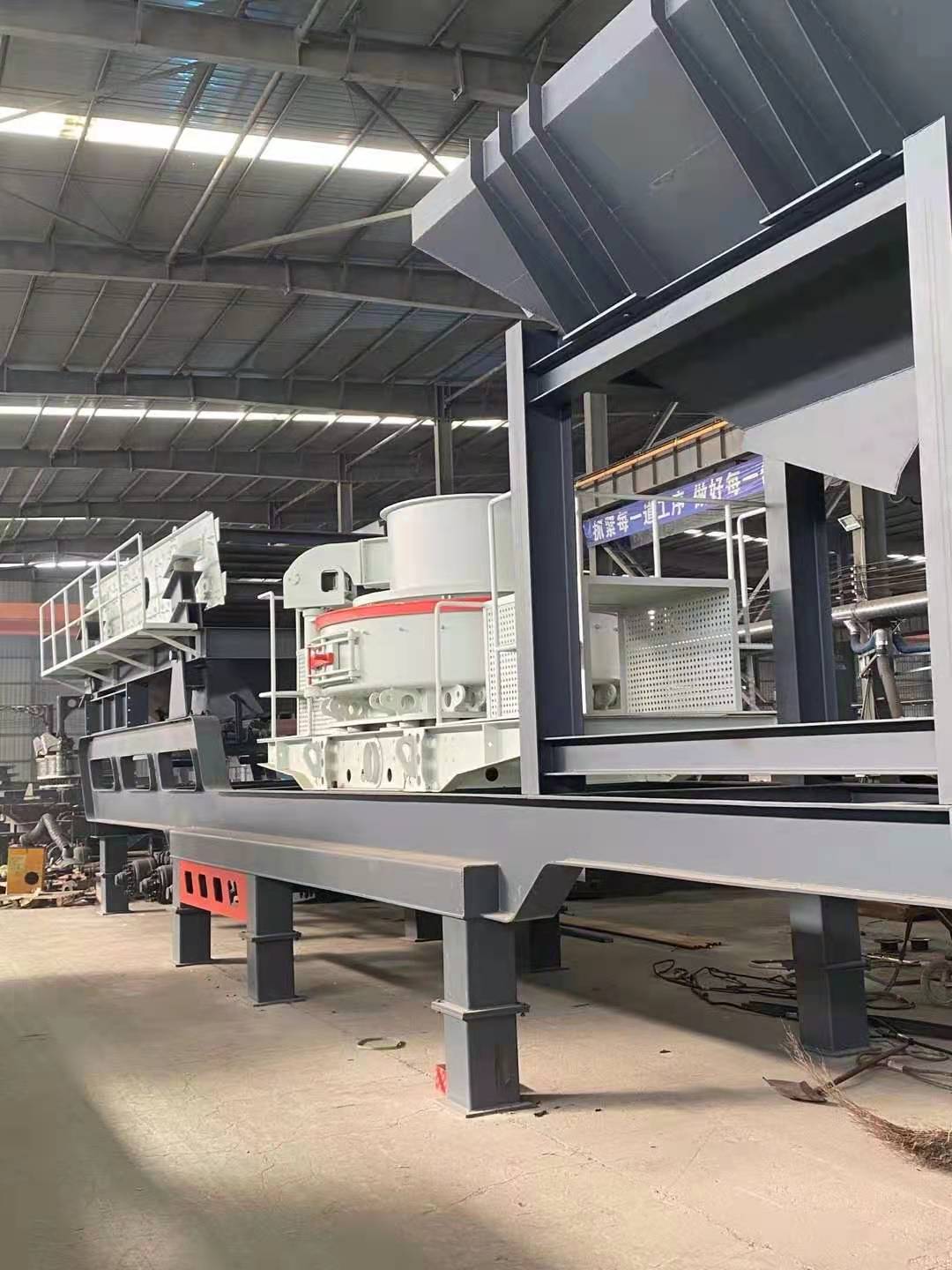

The wheeled impact mobile crushing station (mobile crushing station) is also called the mobile sand making machine, mobile sand punching machine, the vehicle site is high, the turning radius is small, easy to drive on the ordinary road, easy to drive in the rough and harsh road environment of the crushing site: it saves time for the quick entry into the site. It is conducive to entering the reasonable construction area, eliminating the cumbersome steel frame structure and foundation construction when broken, and saving a lot of time. It can provide more flexible process plan configuration for customers' requirements of material types and products in the process, meet various requirements of users such as mobile crushing and mobile screening, and make the generation organization and logistics transfer more direct and effective.
Working Rrinciple:
The working principle of the impact mobile crushing station is the same as that of the impact sand making machine, the material enters the sand making machine by the hopper, the material is divided into two parts by the distributor, one part enters the high-speed rotating impeller in the middle of the distributor, is rapidly accelerated in the impeller, its acceleration can reach hundreds of times the acceleration of gravity, and then is thrown out of the impeller at a speed of 60-70 meters/second from the three uniform flow channels. First of all, part of the material collected from around the distributor is impacted and broken, and then it is impacted to the material lining in the vortex branch cavity, bounced by the material lining, and impacts diagonally upward to the top of the vortex cavity, and changes its direction of movement, deflects downward movement, and forms a continuous material curtain by the material emitted from the impeller runner. Such a piece of material is subjected to two or more chances of impact, friction and grinding in the eddy crushing chamber. The broken material is discharged through the lower discharge port. It forms a closed circuit with the circulating screening system, and generally cycles three times to break the material into less than 20 mesh. In the whole crushing process, the materials impact each other and break, not in direct contact with the metal components, but with the material lining impact, friction and crushing, which reduces the Angle pollution and extends the wear time of the machine. The ingenious self-circulation of air flow inside the vortex chamber eliminates dust pollution.
Product Advantages:
1.Strong mobility Impact mobile crushing plant is highly mobile, providing a more flexible working space.
2.Energy-saving mobile sand making machine reduces material transportation costs, crushing materials on site and saving energy.
3.The combined flexible mobile sand machine has direct and effective operation, independent use, and diversified process configuration.
4.Strong adaptability according to the needs of different crushing and screening system, can adapt to various crushing needs.
